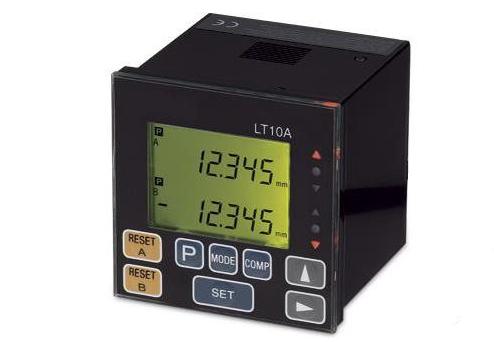

LT10A Series

Data sheet

Drawing

Manual LT10A

Manual LT10A Correction

Manual LT10A/LT10 Supplement

Manual LT* Series Supplement

Technical Info

Accessories

Counter

Extension cable

Gauges

DT12
LT10A CK-T**
CE-08**
DT32

Measuring steps:

1 μm / 5 μm / 10 μm

Comparator function:

GO / NO GO function

ADD / SUB-function:

only 2-axes counter

Interface:

RS232C or BCD available

Axis:

1 or 2

Discontinued:



Advice:



Product code

Type

Description

97928504

LT10A-105

Display (1 channel)

97928505

LT10A-105B

Display (1 channel; BCD interface)

97928506

LT10A-105C

Display (1 channel; RS232 interface)

97928507

LT10A-205

Display (2 channel)

97928508

LT10A-205B

Display (2 channel; BCD interface)

97928509

LT10A-205C

Display (2 channel; RS232 interface)

97924996

CK-T12

Extension cable (1 m); Realize for flection

97924997

CK-T13

Extension cable (3 m); Realize for flection

97924998

CK-T14

Extension cable (5 m); Realize for flection

97924999

CK-T15

Extension cable (10 m); Realize for flection

97930000

CK-T16

Extension cable (15 m); Realize for flection

97958805

CE08-1

Extension cable (1 m)

97958801

CE08-3

Extension cable (3 m)

97958802

CE08-5

Extension cable (5 m)

97958803

CE08-10

Extension cable (10 m)

97958804

CE08-15

Extension cable (15 m)

97920357

DZ252

RS232 cable; 9P female

97956101

DZ253A

RS232 cable; 25P male
