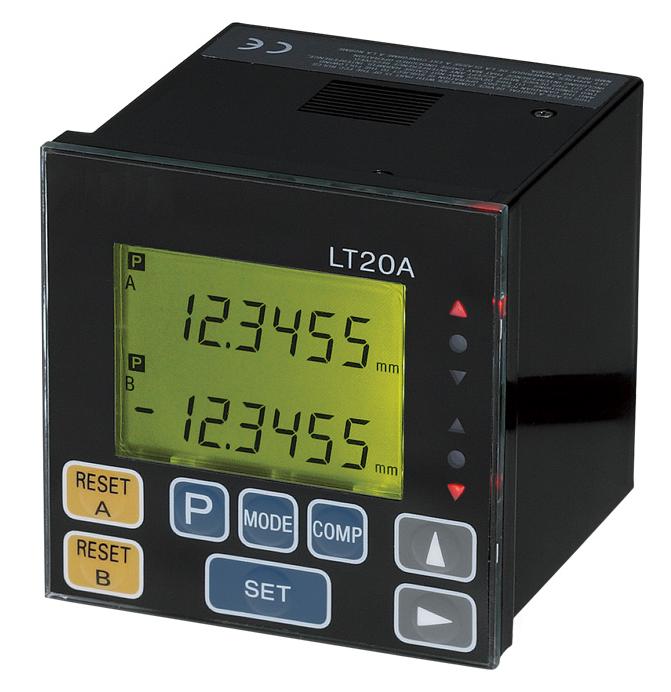

LT20A Series

Data sheet

Drawing

Manual LT20A

Manual LT20A/LT20 Supplement

Manual LT* Series Supplement

Counter

Extension cable

Gauges

LT20A DG-Series
CK-T**
CE-08**

Measuring steps:

0,5 μm / 1,0 μm / 5 μm / 10 μm

Comparator function:

GO / NO GO function

ADD / SUB-function:

only 2-axes counter

Interface:

RS232C or BCD available

Axis:

1 or 2

Discontinued:



Advice:



Product code

Type

Description

97900498

LT20A-101

Display (1 channel)

97900499

LT20A-101B

Display (1 channel; BCD interface)

97900500

LT20A-101C

Display (1 channel; RS232 interface)

97928100

LT20A-201

Display (2 channel)

97928101

LT20A-201B

Display (2 channel; BCD interface)

97928102

LT20A-201C

Display (2 channel; RS232 interface)

97924996

CK-T12

Extension cable (1 m); Realize for flection

97924997

CK-T13

Extension cable (3 m); Realize for flection

97924998

CK-T14

Extension cable (5 m); Realize for flection

97924999

CK-T15

Extension cable (10 m); Realize for flection

97930000

CK-T16

Extension cable (15 m); Realize for flection

97958805

CE08-1

Extension cable (1 m)

97958801

CE08-3

Extension cable (3 m)

97958802

CE08-5

Extension cable (5 m)

97958803

CE08-10

Extension cable (10 m)

97958804

CE08-15

Extension cable (15 m)

97920357

DZ252

RS232 cable; 9P female

97956101

DZ253A

RS232 cable; 25P male
