RS97 Series

Data sheet RS97-1024E

Drawing RS97-1024E

Data sheet RS97-1024N

Drawing RS97-1024N

Manual RS97

Manual RS97-1024E Siemens

Manual RS97-1024N Siemens

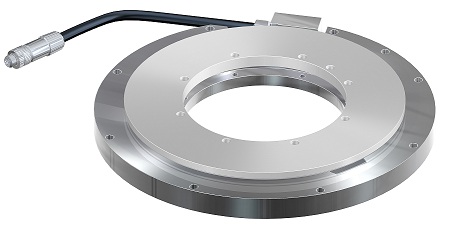

RS97-1024E

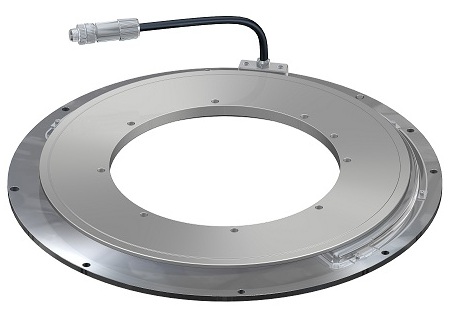

RS97-1024N

Rotary scale

Cable

CNC control unit

RS97
CH22 Siemens
Mitsubishi
CH23
Fanuc

CH22-***○□△#:



:

Conduit specification:

C: with conduit

N: without conduit

:

Cable specification:

S: SIEMENS motion Connect 800Plus (green)

△:

Scale side connector:

E: M12 connector (female) with panel mount relay made by Phoenix Contact

F: M12 connector (male) made by Phoenix Contact

M: Scale head connector

#:

Control side connector:

F: M12 connector (male) made by Phoenix Contact

Y: RJ45 connector mady by Yamaichi Electric

Z: RJ45 connector (water-proof) made by Yamaichi Electric

Resolution:

23 bit output

Accuracy:

± 2,5”

Output wave number:

1.024 waves / revolution

Max. response revolutions:

5.000 min-1

Discontinued:



Advice:



CH23-***○□△#:



:

Conduit specification:

C: including conduit

N: not including conduit

:

Cable specification:

E: Polyurethane Ø8 made by Yoshinogawa Electric Wire & Cable

P: PVC Ø8 made by Hirakawa Hewtech

V: PVC Ø6.8 made by Hirakawa Hewtech

△:

Terminal B specification:

None: Unterminated end

F: 20P made by Honda Tsushin Kogyo

J: 20P made by Hirose Electric

K: 10P JN1 (male) made by Japan Aviation Electronics Industry

M: 10P made by Sumitomo 3M

N: 12P R04 (male) made by Tajimi Electronics

#:

Terminal A specification:

None: Original of Magnescale

A: 10P JN2 (female) made by Japan Aviation Electronics Industry

C: 12P R04-9125J12F8.5 (flange, female) made by Tajimi Electronics
