DL310B Series

Data sheet

Drawing

Manual DL310B

Accessories

Resolution:

10 μm

Measuring length:

10 mm

Accuracy:

10 μm p-p

Installation diameter:

8 mm

Protection class:

IP64

Cable length:

2 m

Output signal:

A/B phase by NPN open collector (12 VDC, 10 mA or less)

Discontinued:



Advice:

Successor = DT12/32 + MT12/13/14

Gauge

Extension cable / Adapter cable

Counter / Interface

SZ70-2
DL310B DZ51 LT30
LY51
DZ51
LY52
LY71
SZ70-1
DZ51
LY72
MG10/20/30
LT20A
DL310B-T01 LY21

Product code



ML

Resolution

Accuracy

max. response speed

Model

97968001

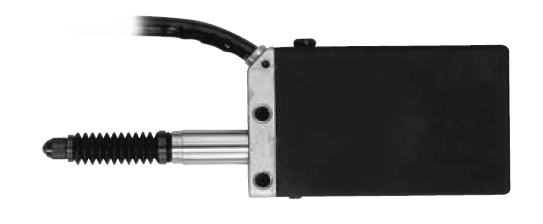

DL310B

10 mm

10 μm

10 μm p-p

120 m/min

Straight

97930268

DL310B-T01

10 mm

10 μm

10 μm p-p

120 m/min

with Sub-HD 15 Pol. to connect to the LY21 directly

Product code

Type

Description

97967101

DZ51

Adaptor

97928115

SZ70-1

Adaptor
