PL

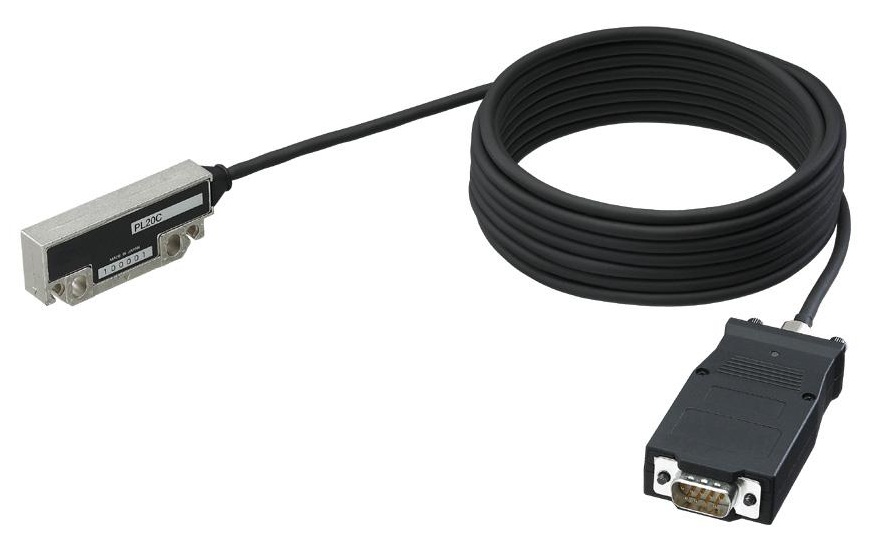

PL20C Series

Data sheet

Drawing

Manual PL20C

Pin assign PL20C

Resolution:

10,0 μm

Max. response speed:

300 m/min

Output signal:

A/B quadrature signal

Discontinued:



Advice:



Scale

Reading Head

Adaptor

Counter / Interface

SL110/130 PL20C
CE30
SZ51-AB01
CK-T157

Product code

Reading head

Description

97928734

PL20C-3

3 m cable

97928735

PL20C-5

5 m cable

97928736

PL20C-10

10 m cable

97928737

PL20C-15

15 m cable

97928738

PL20C-20

20 m cable

97928739

PL20C-30

30 m cable

97928740

PL20C-3C

3 m armor cable

97928741

PL20C-5C

5 m armor cable

97928742

PL20C-10C

10 m armor cable

97928743

PL20C-15C

15 m armor cable

97928744

PL20C-20C

20 m armor cable

Product code

Type

Description

97923714

CK-T157

Adaptor

97930125

SZ51-AB01

(AB/UD; RS422/TLL; configurable)

97928895

CE30

Adaptor cable

LH70/71
LY71
LY72
LG20
LH51/52
LH54-3
LH61
LT30
MG10/20/30
