LH

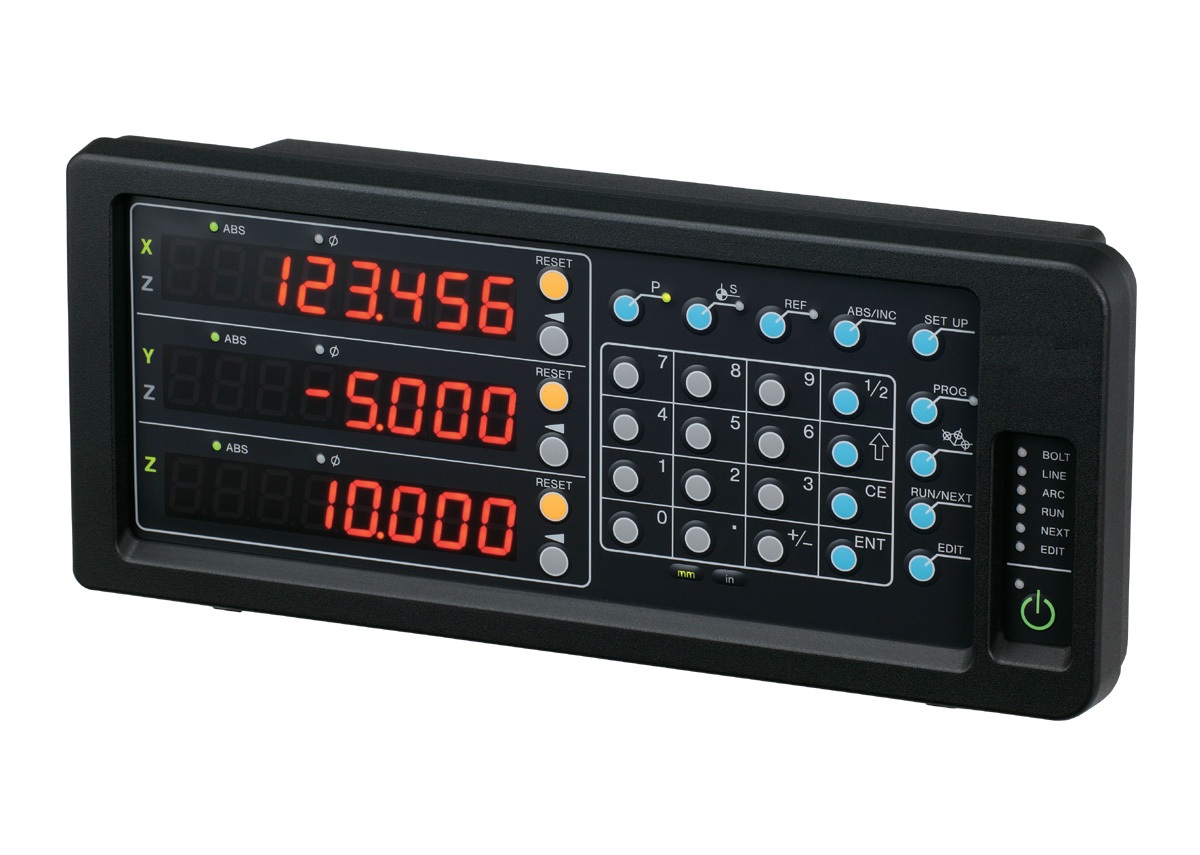

LH70/71 Series

Data sheet

Drawing

Manual LH70

Manual LH71

Manual LH71 Supplement

Manual LH71A

Manual LH71A Supplement

Manual LH7* Series Supplement

Axis:

1, 2, 3

Display:

7 digits and minus display

Input resolution:

0,1 / 0,5 / 1 / 5 / 10 μm; 1 s / 10 s / 1 min / 10 min

Input signal:

TTL-line driver RS422

Multi datum point:

10 by LH70 / 150 by LH71

Tool offset:

12 by LH70 / 99 by LH71

Discontinued:



Advice:

AC Adaptor PSC23 (Power supply)

Counter

Connectable DRO scales

LH70/71/71A
SR138 (GB-ER)
SJ700A
PL20C SL110/130

Connectable Feedback scales

SZ70-1 SZ51-MS01
CE05
SR118
SR74
CH33
CH33 SR84

Connectable Gauges

DG-Series
SZ70-1
DZ51
CE29 DK-Series
CE29 MT13 DT-Series

Product code

Type

Description

97900447

LH70-1

Counter (1 axis)

97900448

LH70-2

Counter (2 axes)

97900449

LH70-3

Counter (3 axes)

97900450

LH71-1

Counter (3 axes)

97900451

LH71-2

Counter (1 axis)

97900452

LH71-3

Counter (2 axes)

97938751

LH71A-3T01

Counter (3 axes) with touch sensor function (for TS series)

97900479

PSC23

AC Adaptor (Power supply)

97967301

SZ51-MS01

Adaptor for CE05-xx / CE07-xx / CH01-LWxx

97928115

SZ70-1

Adaptor for GB-A (CH01) for LH70/71

97952301

CE05-3C

cable (3 m; Hirose 7P/HA31A)

97952302

CE05-5C

cable (5 m; Hirose 7P/HA31A)

97967101

DZ51

Adaptor

97928697

CE29-01

Adapter cable (1 m)

97928698

CE29-03

Adapter cable (3 m)

97928699

CE29-05

Adapter cable (5 m)

97928700

CE29-10

Adapter cable (10 m)

97928768

MT13-01

Detector (1 μm resolution)

97928769

MT13-05

Detector (5 μm resolution)

97928770

MT13-10

Detector (10 μm resolution)

97950946

CH33-03CPD

with armor / PVC / Sub-D

97950956

CH33-05CPD

with armor / PVC / Sub-D

97950957

CH33-10CPD

with armor / PVC / Sub-D

97950959

CH33-03CED

with armor / PU / Sub-D

97950960

CH33-05CED

with armor / PU / Sub-D

97950961

CH33-10CED

with armor / PU / Sub-D
