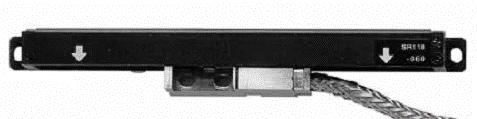

SR118 Series

Data sheet

Drawing

Manual SR118

Manual SR118 Supplement

Resolution:

0,5 μm

Measuring length:

15 mm - 260 mm

Accuracy:

ML 15 - 60 mm: +/- 2 μm; ML 100 - 160 mm: +/- 2,5 μm;      ML 210 - 260 mm: +/- 3 μm

Protection class:

IP44

Cable length:

300 mm

Discontinued:



Advice:



Scale

Cable

Adaptor

Counter / Interface

CE05-**C SZ51-MS01
SR118 SZ70-1 LH70/71
LY71
LY72
LG20
LH71A-3T01
SZ51-MS01
LH51/52
LH54-3
LH61
LG10
LY51
LY52
MD20B
AK2-**C
LT20A
CH02 LT20
LT100

Product code

Type

Description

97965501

SR118-015

Scale (15 mm)

97931110

SR118-015T02

Scale (15 mm)

97965502

SR118-030

Scale (30 mm)

97965503

SR118-060

Scale (60 mm)

97965504

SR118-100

Scale (100 mm)

97965505

SR118-130

Scale (130 mm)

97965506

SR118-160

Scale (160 mm)

97965507

SR118-210

Scale (210 mm)

97965508

SR118-260

Scale (260 mm)

97952301

CE05-3C

Adaptor cable with Hirose (1 m)

97952302

CE05-5C

Adaptor cable with Hirose (5 m)

97921085

AK2-10C

Adaptor cable with Hirose (10 m)

97991267

AK2-LA03N

Adaptor cable with Hirose (3 m)

97968601

CH02-01

Adapter cable (1 m)

97968602

CH02-03

Adapter cable (3 m)

97968603

CH02-05

Adapter cable (5 m)

97967301

SZ51-MS01

Adaptor for CE05-XX / CE07-XX / CH01-LWXX

97928115

SZ70-1

Adaptor for old scale GB, PL20B, DG-B
